*Arrives in one wooden case

*Fumigation free wooden box with standard export packing

*Nylon belt and screws fixing the roaster with wooden crates to prevent the roaster shaking

*Steel belt fixing the wooden crates

*All of the production are inspected carefully by QC before delivery

*Shipped in 5-7days after full payment

*One Year Limited Warranty

*Each roaster will come with a birth card (unique birth code) & Warranty card stated warranty terms.

*All our roasters come with standard one year limited warranty. Please ask sales for warranty terms

*24/7 Online & Phone Tech Support.

*Replacement Parts will be delivered with DHL, FEDEX, Air Express courier on our cost.

*Warranty can be extend up to 3 years with extra cost.

Chassis

*Monolithic, low carbon steel weldment – the heaviest constructed roasters in their class.

*Fully gusseted for dimensional strength and stability.

*Fully coated to prevent corrosion.

*Integrated double-walled roast compartment is heavily insulated which further converts the chassis into a thermal battery – storing heat, rather than wasting it.

*Materials in both the chassis and the roast compartment absorb heat more efficiently and release heat more consistently for increased stability of temperatures during profiling.

*Trapping heat = trapping noise. Ambient drum noise is limited to a whisper quiet 60 decibels making it easier to hear those early outliers before first crack.

Drum

*Double-wall, stainless steel drums standard on every model. The heaviest, most-efficient drum design in the industry.

*Construction accuracy is machine trued to within +/- .025”.

*3mm air gap between inner and outer drum diffuses heat more evenly throughout inner drum.

*Diffused heat at inner wall eliminates conductive roast defect, even at higher inlet temperatures.

*Dramatically increased thermal efficiency by storing & using heat, rather than quickly releasing.

*“Bomb proof” construction prevents warping due to operator error.

*Every model equipped with quick response, variable drum speed allowing the operator to achieve ideal bean loft and conductive vs. convective ratio. Result is the flexibility to profile batches from 20%-120% of listed drum capacity on most models.

*Advanced drum gap adjustment mechanism is standard on all models two kilogram capacity or greater, making adjustments easier and more precise.

Fuel

*Custom burners designed specifically for coffee roasting.

*Burner layout is specific to each model to achieve optimal burner-to-drum relationship.

*Easy access, external shut-off valves on every roaster.

*Built-in temperature limiters to allow for safe operation.

*Built-in safety shut-off on pilot valve.

*Easy on-site conversion from LP to natural gas.

*Digital electronic modulating valve offering greater control for your most challenging profiles in variable batch sizes.

*Fuel adjustments at the push of a button.

Air & Exhaust

*Power-vented dual exhaust system standard on every model with fan placement designed to allow for easy cleaning and maintenance.

*Roaster exhaust fan is high pressure, high output 3-phase VFD speed controlled with linear response curve for more predictable and more precise airflow control and roast profiles repeatability.

*Cooling tray exhaust fan is a dedicated, high-pressure fan providing rapid cooling to stop roast progression once batch is dropped in cooling tray. Dual exhaust system allow for simultaneous roasting and cooling, reducing back-to-back batch times and increasing production to 4+ batches per hour.

*All machines include face-mounted digital drum pressure gauge.

*All models equipped with dedicated, off-board chaff filtering collectors with easy access doors to aid in frequent clearing of chaff and completion of safety checks.

*Optional quick-release venting kits available for every model.

*Fully specified requirements for venting to termination including layout and cap recommendations.

*Fan adjustments at the push of a button.

Safety

*Entire contact path of roaster (hopper, loading chute, faceplate, trier, drum, discharge gate, discharge chute, cooling tray cover, cooling tray floor, stirring/mixing arms, cooling tray gate, cooling tray latch, cooling tray gate) all custom fabricated with certified food grade stainless.

*Heavy duty 5mm x 44mm Borosilicate sight glass.

*Food service safe LED light.

*Food safe resin-impregnated trier handle.

Install & Maintain

*Designed with stand-alone chaff collector to allow for easier moving, better access and easier maintenance. Separate components can offer more flexible layouts for users with space limitations.

*Detachable control panels for moving components through standard size door openings. Removable hoppers on all models.

*Lockable, smooth-action casters on roaster.

*Quick-Connect Kits available to quickly connect components.

*Roaster body features large, full swing, removable access doors on both sides for easy access to interior components.

*Cooling tray features large, full swing, removable access doors on both sides for easier cleaning.

*Warranty

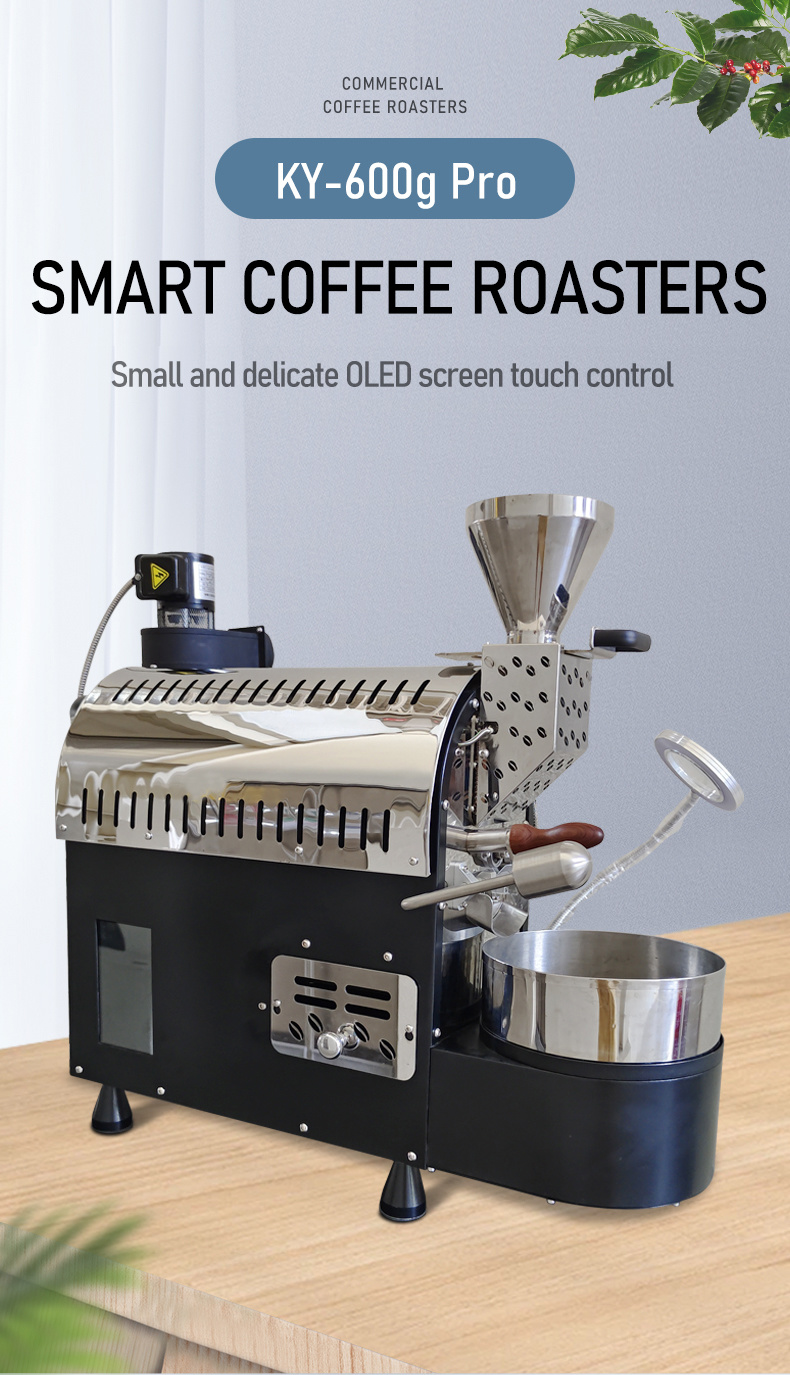

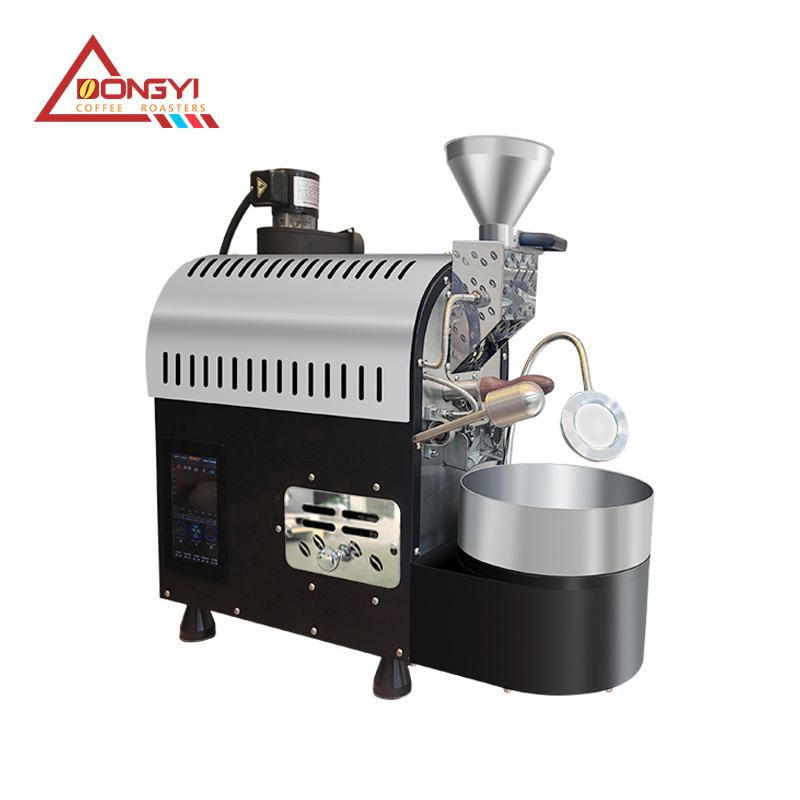

*Non-stop roasting from 100g-600g and roasting can work at same time. with a roasting time of 12 to 15 minutes

*Temperature Range: up to 300Celsius/572 Fahrenheit meet different roasting needs and preferences.

*Heating Source/Mode: Natural Gas/ Propane/ LPG /Full electric.

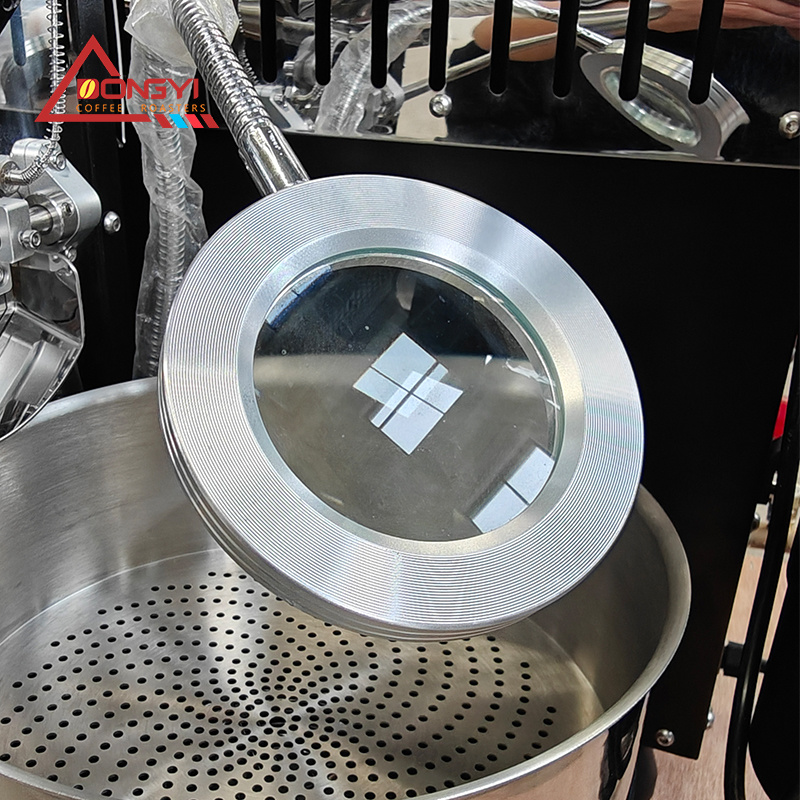

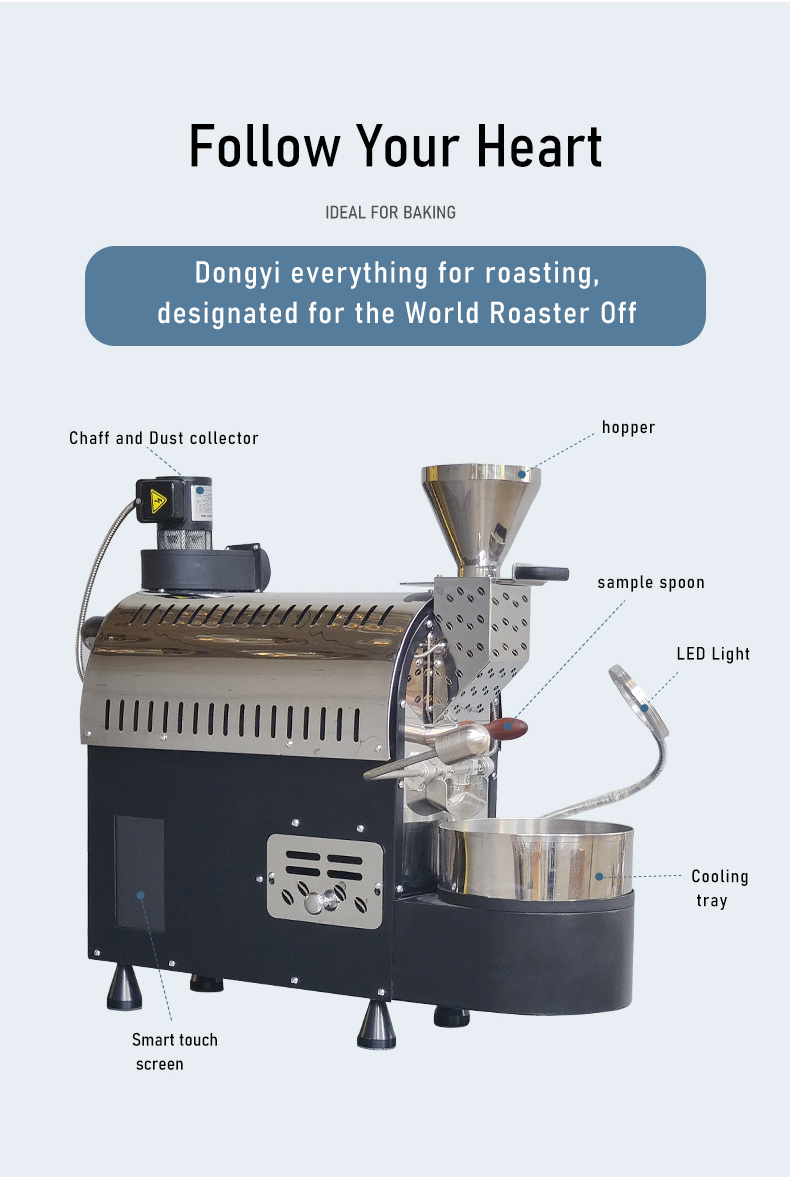

*Equipped with a visual window, can clearly observe the color change of Coffee; import Rosewood Handle sampler, high-end atmosphere.

*With Import rosewood bean sampling handler for checking the degree of roasting

*Both electric and manual controls of air flow to maximize coffee taste.

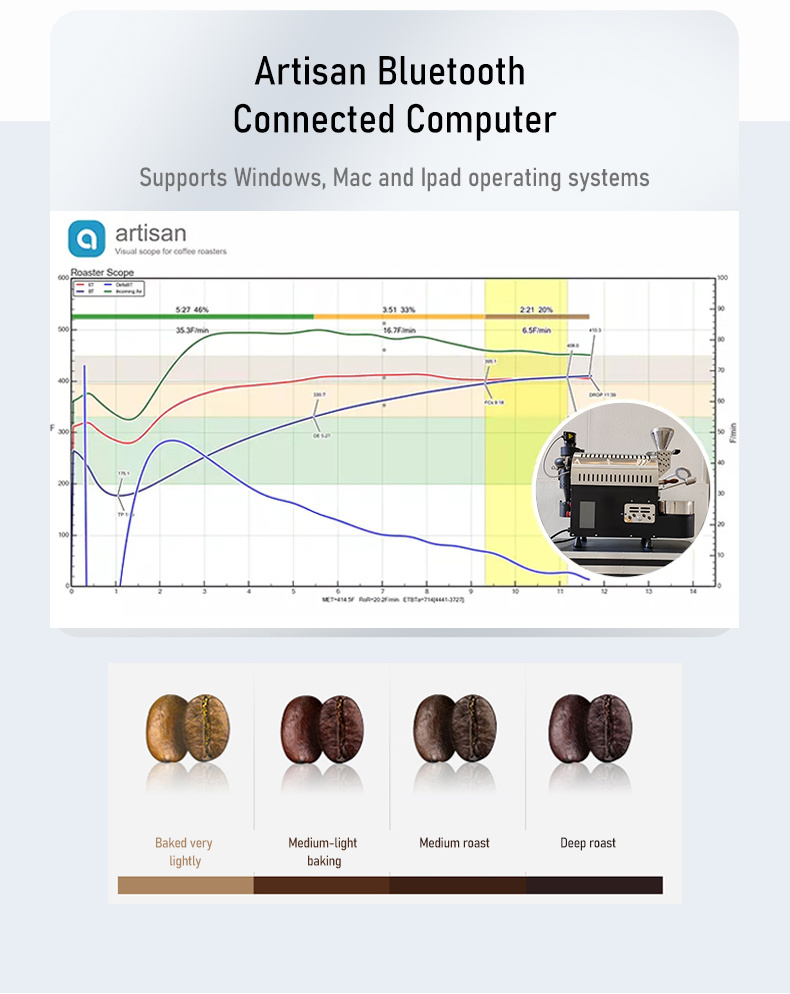

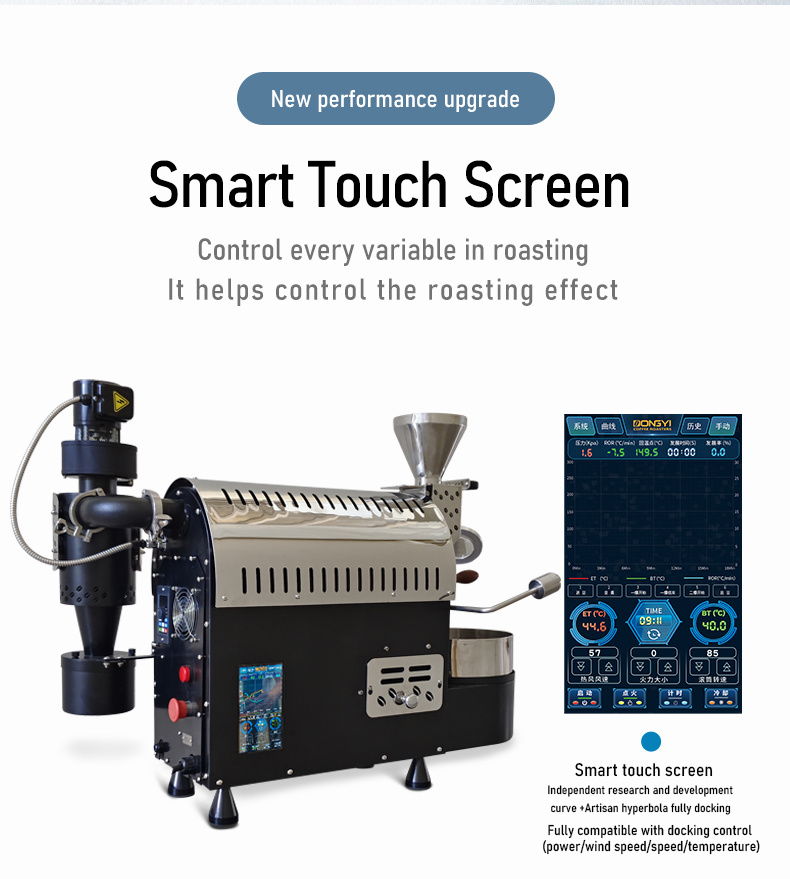

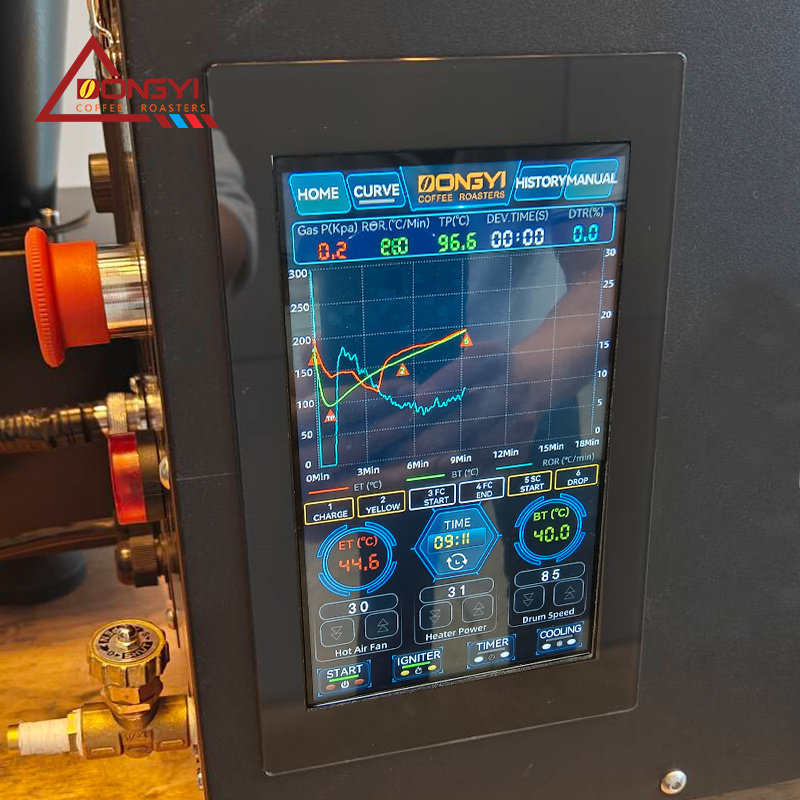

*Deluxe Edition is equipped with data logger software USB port/Bluetoon and dynamic curve monitoring software, can be directly connected to the computer with ET and BT sync at Artisan software and Cropster software.

*Equipped with infinitely adjustable-speed system.

*All bean contact body are made of high temperature resistant 304 food grade stainless steel.

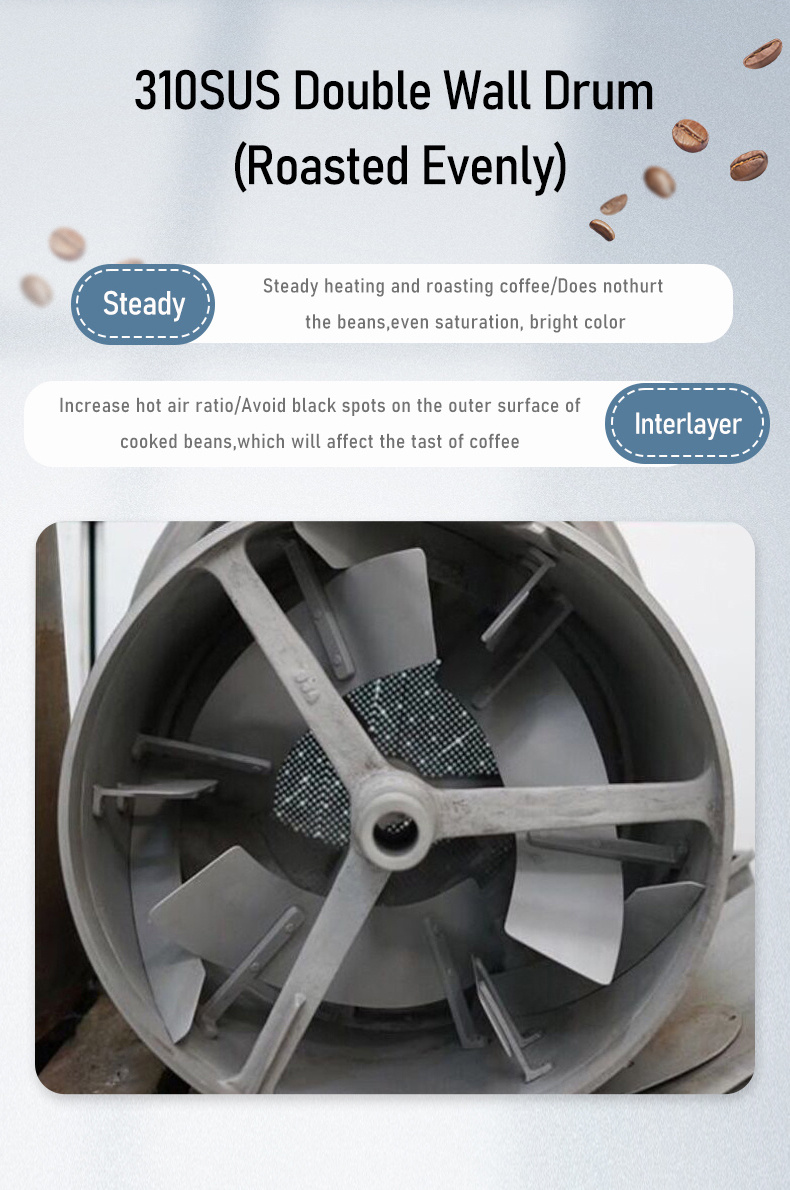

*4mm thick food level 304 stainless steel double wall drum with the mixing blades to ensure the best blending and even roast heat evenly, heating fast, save energy home coffee roaster

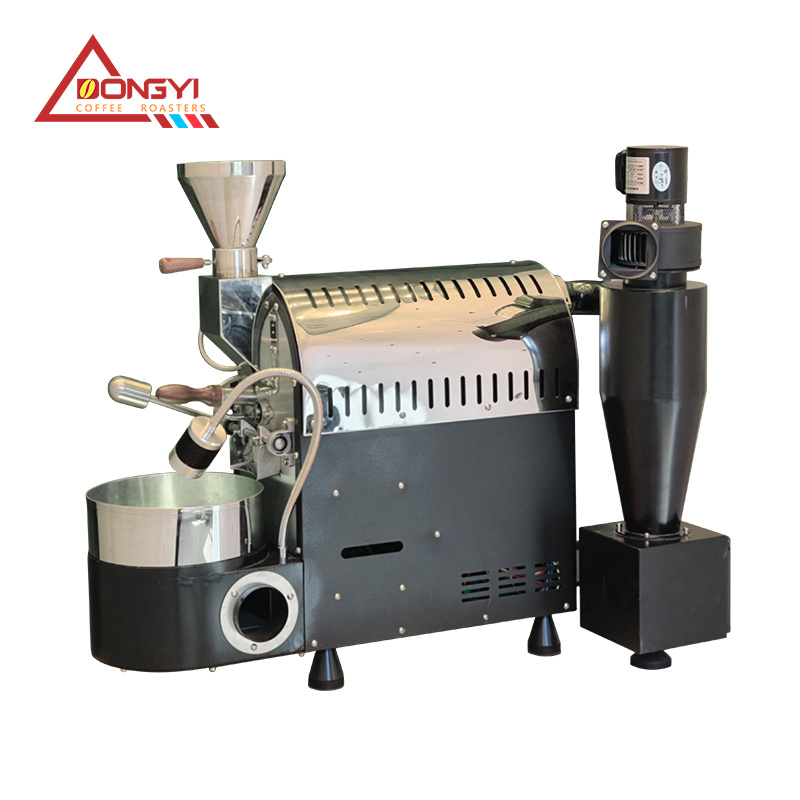

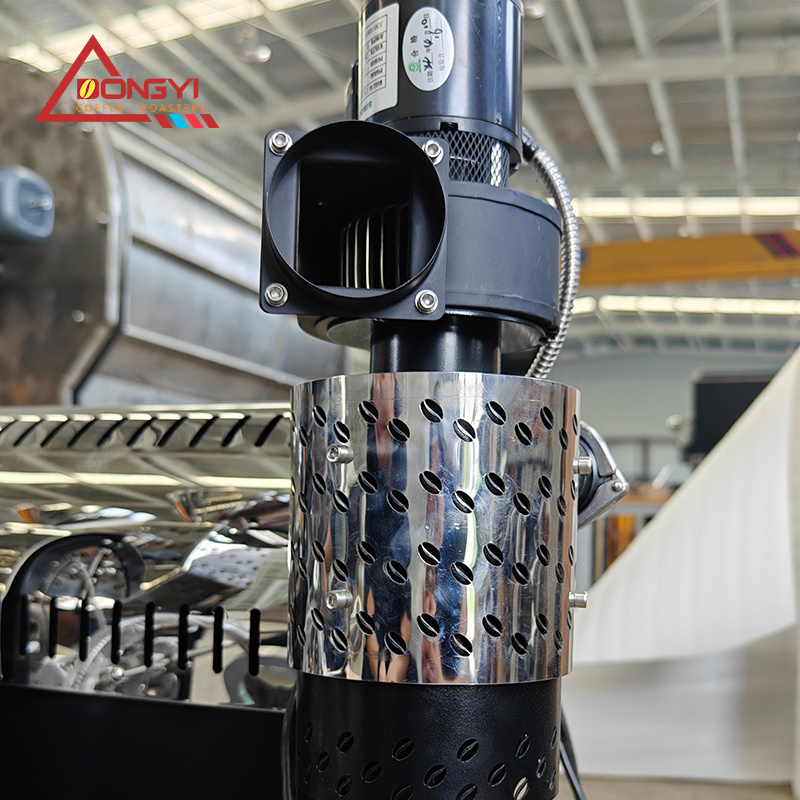

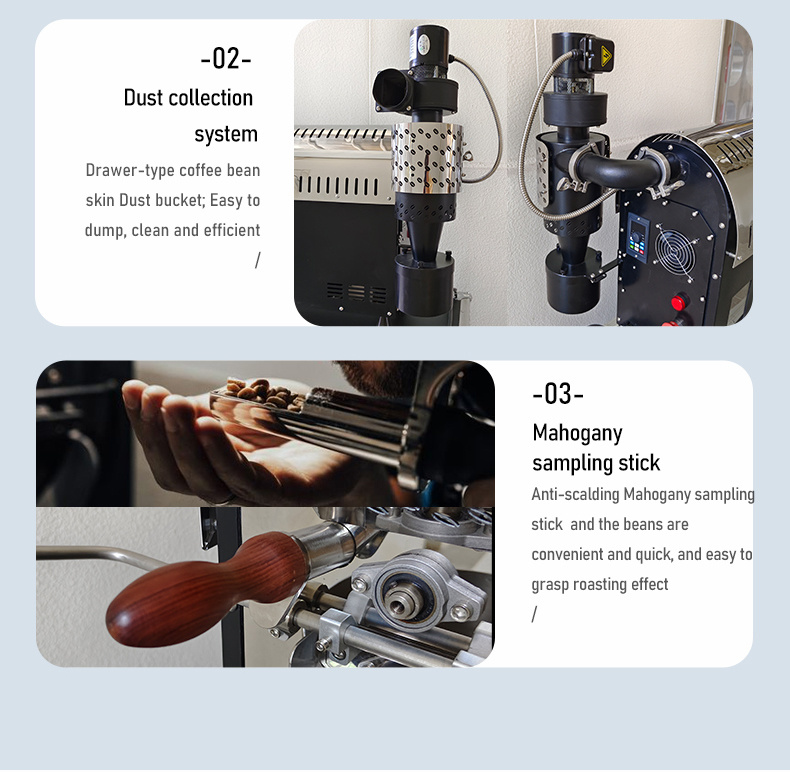

*Including cyclone dust collector and exhaust pipe.

*Fuse and leakage protector.

*Electric igniter

*LED delue Lamp.

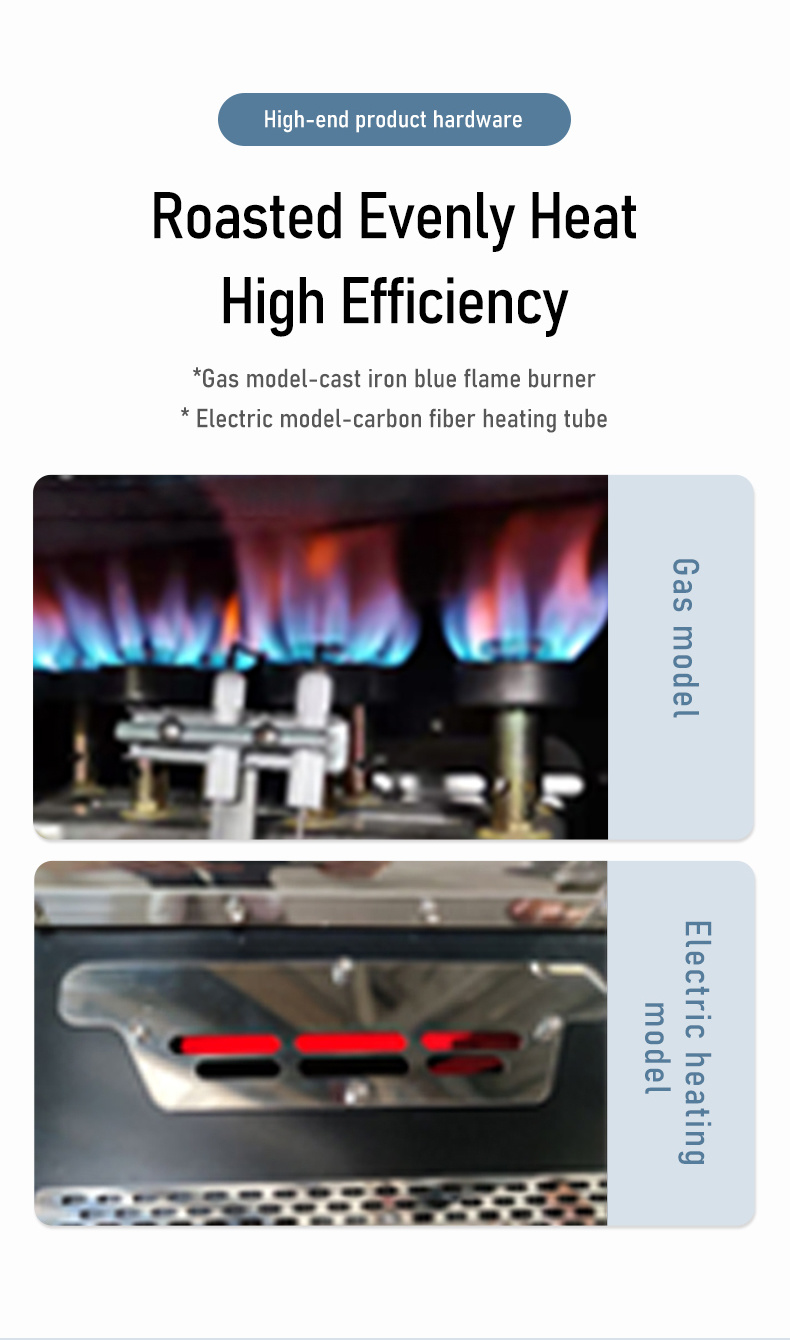

*Utilizes a Taiwan cast iron burner for effective heating and fuel savings.blue flame fierce fireenergy-saving burner

*Electric model-carbon fiberheating tube

*Equipped with timer, easy to check the baking time.

*Electronic throttle control, through the knob to change the exhausting motor speed, to change the fan speed, to realize stepless control.

*304 stainless steel made gas valve regulator you can adjust fire volume precise...

*ADDKA Japan motor equipped with infinitely adjustable-speed system

*Hot air regulation system. you can adjust hot-wind speed.

*High-end digital timer, can set the baking time at any time, and with a warning reminder function.

*Industrial grade continuous baking design, high temperature hot air circulation frequency conversion adjustment system, to achieve a long time to bake temperature accurate and controllable.

*Equipped with 30mm insulation material, ceramic fiber for heat resistance, and minimal heat loss.

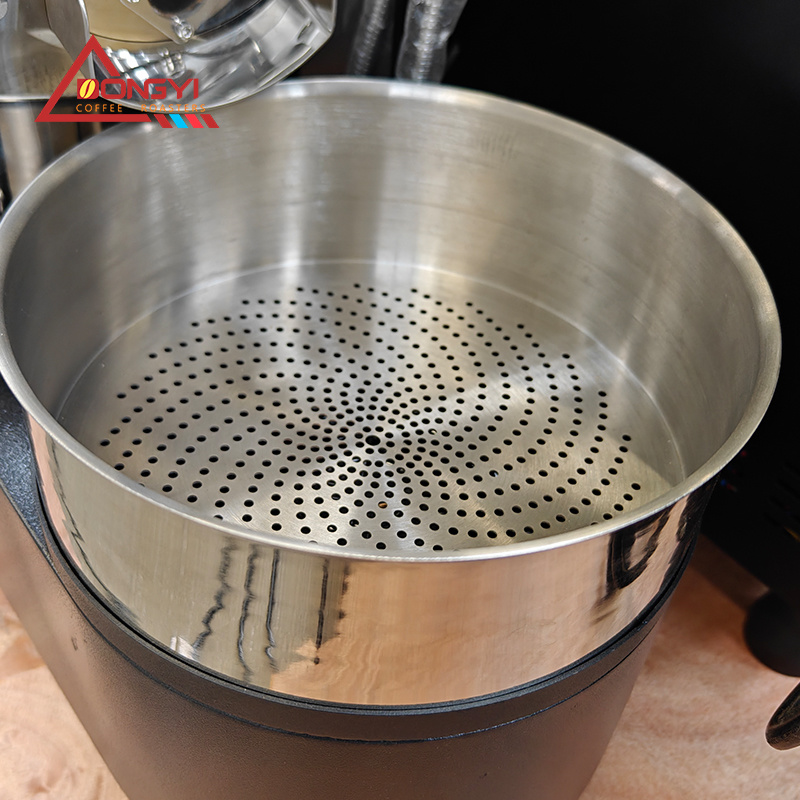

*Large independent fan and cooling mixng plate, cooling rapidly (1-2 minutes), can be continuous baking operation.

*It is designed for easy maintenance to ensure longevity and reliability.

*Supply DIY customer color on roaster body and cover housing.

*Allows for logo and color customization to create your own brand.

Optional equipment recommend:

*Smoker filter & afterburner for exhaust air emission and remove

*Grinder to meet your coffee business use

*Weight filling machine and package sealing machine for coffee business use
